Longway products are high quality, 100% tested, our dampers provide fluid and silent movement. Whatever object you want to slow sown, we have the right damper for you.
LY-S1804 Custom toilet seat soft close damper for washing machine
Item No :
LY-S1804Order(MOQ) :
100Package Included :
JIANGSU,CHINAColor :
CustomizableShipping Port :
SHANGHAILead Time :
15-25 DAYS
Please contact us for technical assistance with any special requirements.
Main Material:
- Shell: PA66+30%GF (Glass Fiber Reinforced Polyamide)
- Shaft: POM
Specifications:
- Dimensions: φ18mm

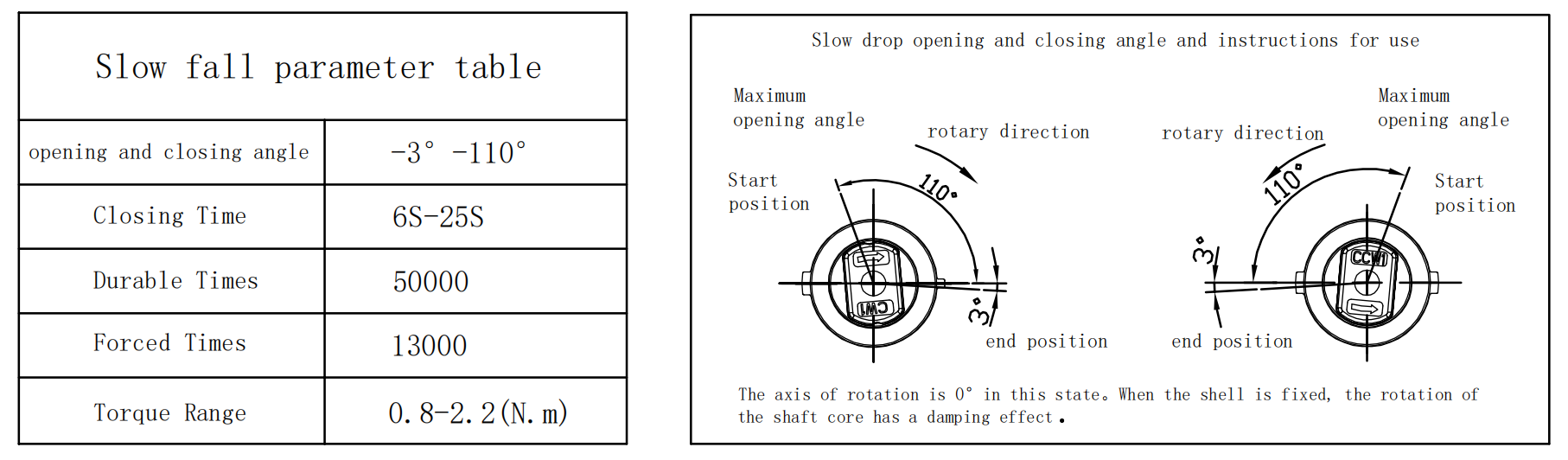

- Slow Fall Parameter Table:
- Opening and Closing Angle: -3° to 110°
- Closing Time: 6 to 25 seconds
- Durable Times: 50,000 cycles
- Forced Times: 13,000 cycles
-Torque Range: 0.8-2.2 N·m
Product drawing :
Product Advantages :
1. Soft-close time is stable, fluctuation is only between 1-5S
2. Small size with big torque the outer diameter is only Φ20mm, but the torque range from 0.5-4Nm
3.Strong security, soft close function is active even open with a small angle to prevent hands clippcd
4.Soft close without any voice
5.Strong reliability, the soft close lifespan is 100000 times and the forced press is 50,000 times
About LONGWAY
Taizhou LONGWAY Molding Technology (Longway Plastic) is located in Jiangsu province,China. With over 15 years manufa. cturing experience, specializes in rotary dampers, metal hinges and injection moldings.
We provide precision quality innovative solutions to to our customers , and our dampers have been engineered and tested to provide smooth consistent torque,what help to make your production processes faster, more efficient, quieter safer and more sustainable.
Any kind of order even the sample demands, all the batch of products are tested by our inspection department before shipment, we have accumulated much experience how to use our professional and technical knowledge to help our customers realize additional savings by making design for manufacturing suggestions and by providing research and suggestions into production processes and materials.
After years of accumulation we have established long-term strategic cooperative relations with many well-known domestic and foreign companies. We also welcome OEM and ODM orders. Whether selecting a current product from our catalog or seeking engineering assistance for your project, we provide free sizing and selection services to help ensure you spec the right product for You.
We look forward to working with you to become your strong partner in Asia!
Contact us today to explore our innovative damping solutions and learn how we can support your projects.
Our service
1.Professional pre-sales service to fully understand your needs
2.Support customization and provide you with the best solution
3.Follow up throughout the entire process to ensure your order is delivered to you quickly and safely
4.Perfect after-sales service to solve your worries
FAQ
Q: How to make sure we can get a perfect soft close time for our product?
A: We do soft close time test during production. Will need ur sample to control quality.
Q: How to produce a customized rotary damper?
A: Provide us with dimensions for rotary damper or ur product.We will start 3D drawing to confirm dimensions.Prototype sample is acceptable.
Q: What's the torsion for your rotary damper?
A: For non-adjustable damper,the torsion is 1NM. For adjustable damper,the torsion is 1NM-3NM.
Q: What's the production lead time for toilet hinges?
A: 15-20 days
